Double Schuko Socket
VODE 2514 Double Schuko socket, a professional product to solve specific installation problems. Encountering problems like deep recessed box, slender wall, intricate conduits etc., and the ordinary socket is very difficult to be installed, or too soft to press down the cable. The 2514’s deeper design addresses these issues.
Description
Double Schuko socket

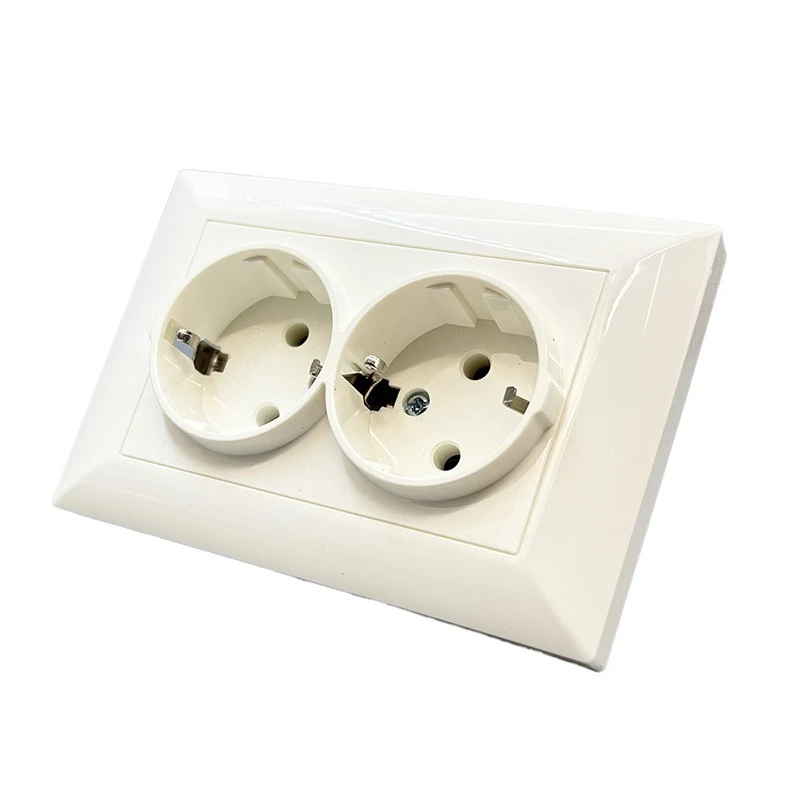

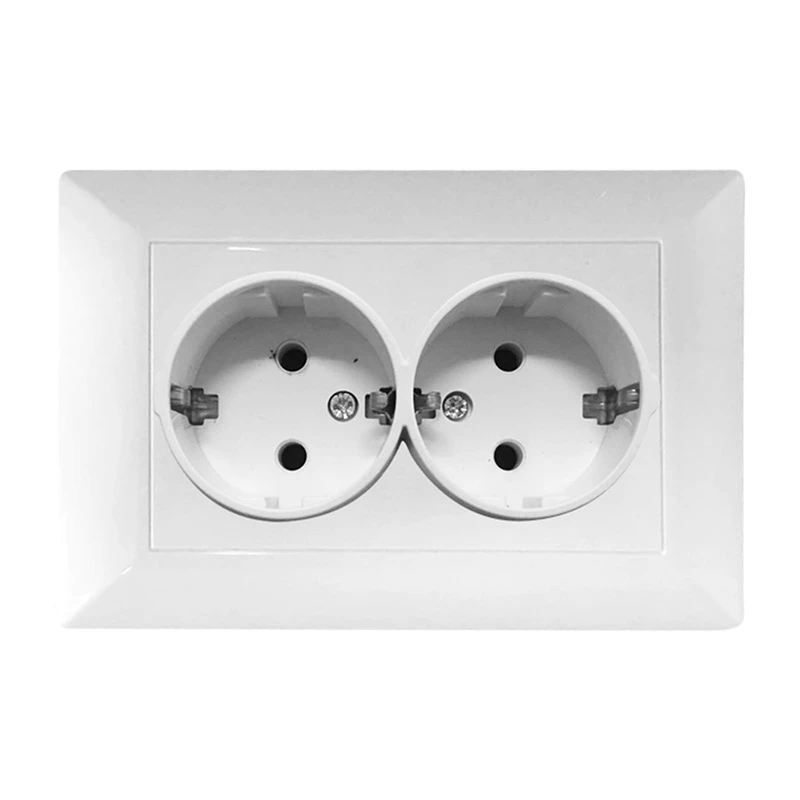

The VODE 2514 Double Schuko socket has been developed for installations in spaces where there is no space for more than two positions. It has a 40mm deeper panel to give more space for wires, and solid steel terminals that hold things firmly, so it's good for complicated wiring situations.
Product Description
VODE 2514 Double Schuko socket, a professional product to solve specific installation problems. Encountering problems like deep recessed box, slender wall, intricate conduits etc., and the ordinary socket is very difficult to be installed, or too soft to press down the cable. The 2514's deeper design addresses these issues.

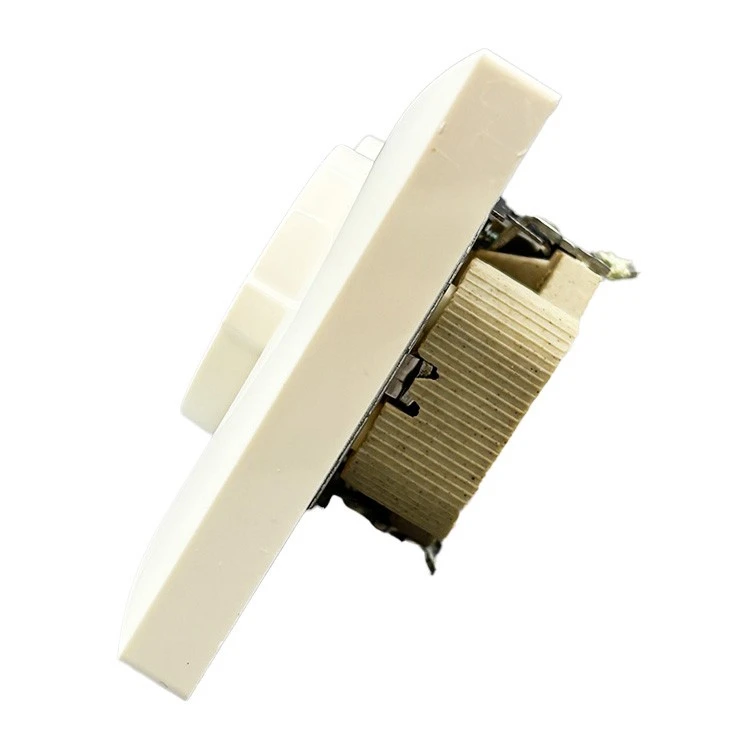

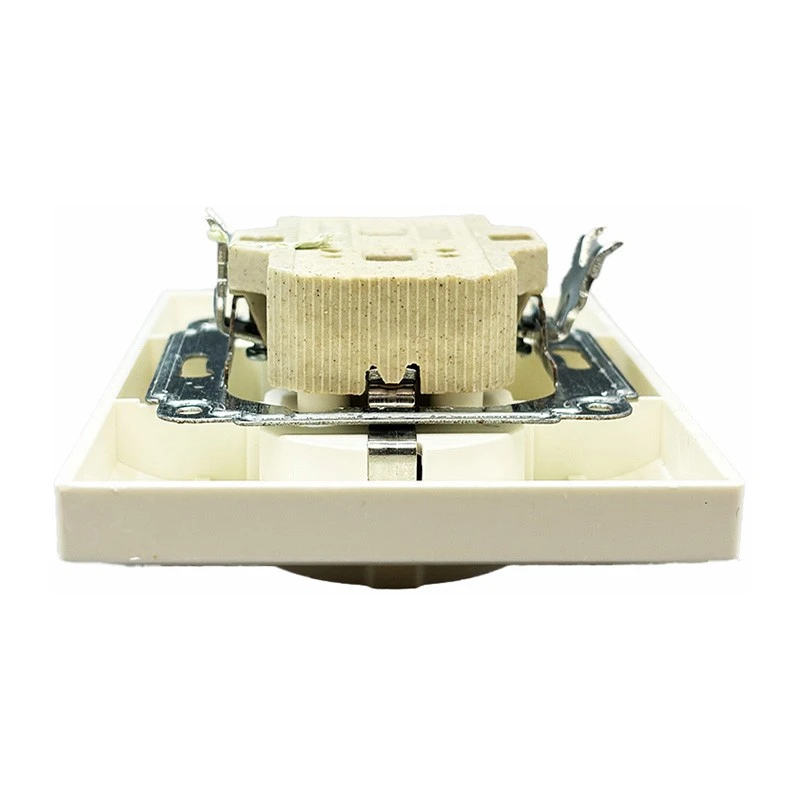

Keep the standard 82-type panel appearance, but increase the overall depth to 40mm to give more space for power cords and terminals. This also makes the installation of electricians easier and faster. Also, it can avoid all kinds of problems caused by congestion, such as wire damage, poor contact, even panel deformation, thus fundamentally ensuring the success rate and long-term reliability of the installation.

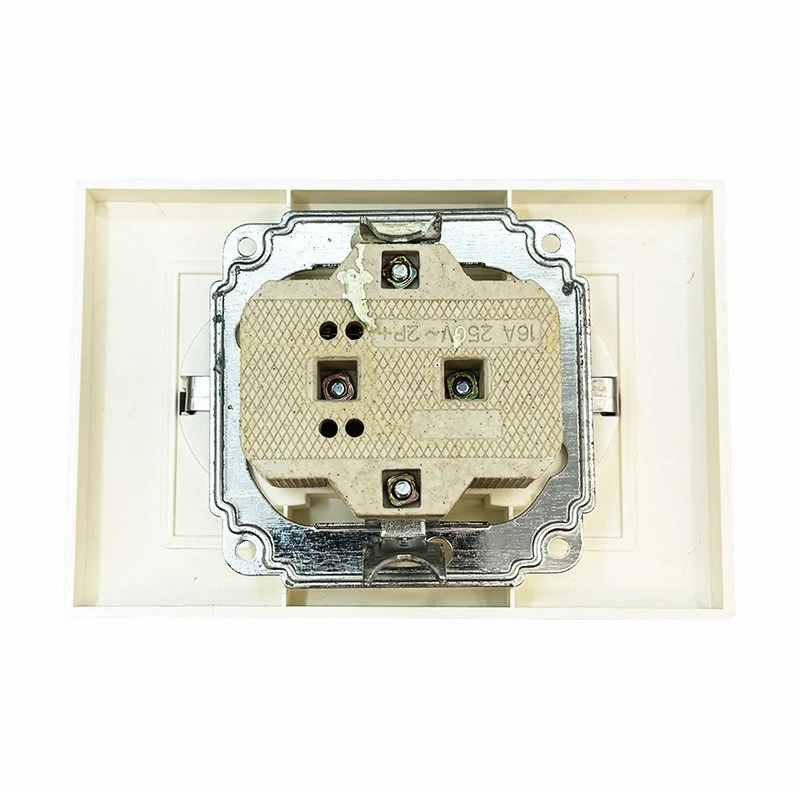

At the important electrical connections, 2514 Double Schuko socket uses stronger hardened steel terminals that are much better at taking pressure and lasting longer than normal ones. So that it remains a secure connection even after being tightened many times, or after being handled by thicker wires. When combined with good quality brass conductors and a ceramic core it gives a low resistance and is safe through out the path of the current. The product is based on VODE's understanding of how things are installed, it is a solid partner for the hard wall structure and custom installation.
Product Specifications
|
Product Name |
Double Schuko socket |
|
Model |
2514 |
|
Material |
ABS shell, ceramic core, brass conductor + stainless steel grounding |
|
Protection Rating |
IP22 |
|
Color |
White |
|
Rated Voltage/Current |
250V~ / 16A |
|
Net Weight/Piece |
122g |
|
Gross Weight/Carton |
17.25kg |
|
Quantity per Carton |
120 pieces |
Electrical Solutions
Urban Renewal &Remodeling Projects
The pre-embedded junction box specification and wall groove depth problems of old buildings are solved by the deep-insertion design of the 2514 Double Schuko socket, which avoids the re-grooving trouble and cost.
High-end customized furniture
When embedded in the thick back panel of customized cabinets, customized bookshelves, or customized TV background wall, sockets need to be installed with a deeper rear space. The 2514 Double Schuko socket guarantees a flat install and no compression of the internal cables.
Industrial Equipment Control Cabinets
Installed on the side panels of control cabinets for non-standard automated equipment, it can provide a temporary power supply for maintenance tools and testing equipment, the deep-inserting structure and solid terminals are more resistant to vibration.
Advantages
For the commonly used deep-pitch model 2514, we have a rolling plan, so the regular orders can be delivered in 12 days. favorable sailing routs & freight chargs to main SE asian pors - bring down shipping expns. We are also accepting the RMB settlement, and we can give you proforma invoice to make it easy for you to make foreign exchange payment and import customs clearance, making your business transactions clear and transparent.
Technical Q&A
• Q1: Does it need a special 86-type junction box because of the deep-insertion design?
No, it is fully compatible with standard 82-type junction boxes, the deeper design is made for the situation that there are too many cables in the junction box or not enough installation space because of the special structure of the wall.
• Q2: The advantages of stainless steel grounding?
Stainless steel grounding has better mechanical strength and better resistance to deformation. When screwing in, it is not easy to strip the threads. It can give a more stable and durable clamping force. It's especially fit for those tooling that need to do wiring frequently or use thicker wires.
• Q3. Is it possible to provide the product in a non-white color?
White as a standard. You have special color requirements for the matching projects, and we can support customizations. Please ask our sales team for specific MOQ's and color samples.
